VE6JY - DON MOMAN
20 Meter Antenna system

• The 20 meter antenna system is made up of a stack of 3 antennas
  The first Antenna - 48.7 Meters (160 feet)
  The second antenna - 33.5 Meters (110 feet)
  The third antenna - 16.7 Meters (55 feet)

• Each antenna is custom made with boom length of 14.6 Meters (48 feet)
• Is if the W6QHS design using 5 elements.
• The top antenna can turn a full 360 degrees
• The lower antennas are side mounted and can turn ~ 300 degrees.
  • Picture of current side mount using the Alfaspid rotator

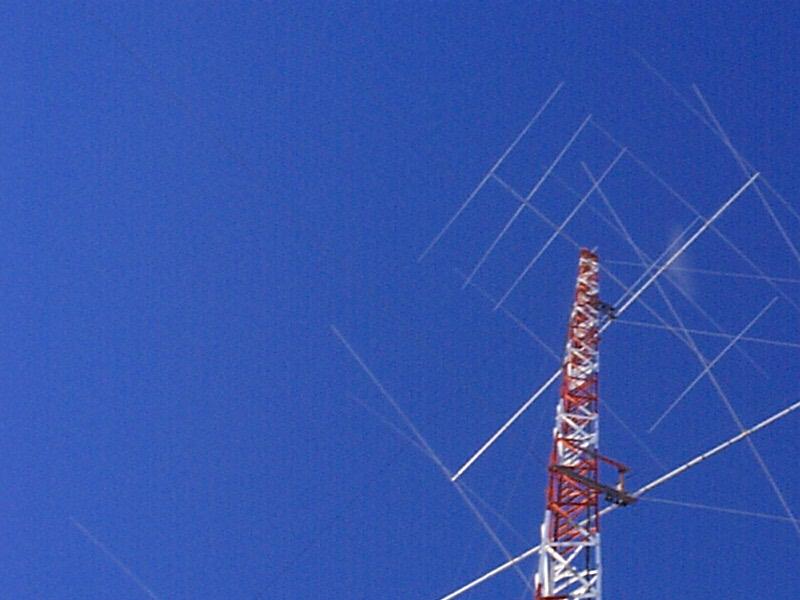

• Picture of the 20 meter stack looking up 20mstack.jpg
